32” (686) Wheels

If you pay attention to the goings-on within the bicycle industry, particularly the MTB side of things, you may have spotted some chat about a new wheel size. But before I dive into that, it might be worth just recapping where we are with bicycle wheel sizes as of right now. I’m not going to cover every single wheel size since the beginning of bicycle history, just the common sizes from the past 20-odd years, sizes you’re likely to have come across if you consider yourself a bike rider.

Let’s start with road bikes, at the beginning of my bike riding life, most road bikes had 27” wheels. This was close to the 700c size that most road bikes currently use. 27” was a popular size in the UK and the US but become pretty obsolete as the 700c designation that was common in Europe started to take over. The diameter of the 27” was actually a little bigger than 700c. There’s also a 650c size (not to be confused with 650b - see below) which is pretty rare but makes an appearance on some time-trial and tri bikes as well as race bikes for juveniles and smaller riders.

When mountain bikes got really popular in the 80s and 90s they all had 26” wheels, in the 2000s several manufacturers introduced the 29” wheel that most MTBs currently use. Interestingly the 29” wheel size is exactly the same size as the road 700c size. Fast forward a few years and we have an in-between size, 27.5” (also known as 650b). Not only is this popular in the mountain bike world, but has become pretty common on gravel bikes.

You might be a little confused at this point with the way we’re describing tyre sizes, you’ll have noticed that we’ve been mixing units and jumping around quite a bit. For tyres that are listed in inch sizes (eg 27”, 29”) these numbers refer to a very rough estimate of tyre diameter. Same with 700 or 650 except in this case it’s the tyre dimater in mm. The ‘c’ or ‘b’ suffix designates the width of the rim for that size of tyre. It’s not a number you can rely on but it is a convenient way of grouping tyres together.

Thankfully there are some standards that very accurately define tyre and wheel sizes and all current manufacturers adhere to these standards. The ISO wheel standard for bicycles describes a dimension that relates to the diameter of the rim where the bead of the tyre sits. Sometimes known as BSD (Bead Seat Diameter). An example of this would be ISO622 which is what all 700c and 29” rims/tyres fit into. Expanding on the ISO standards is the ERTRO standard. This takes the ISO dimension and adds a tyre width value. Like ISO, this is described in mm. An example of an ERTRO size would be 32-622 which is a 700c wheel with a 32mm tyre. I’ve added a chart at the bottom of this page that lists some common wheel sizes and their current standard designations. Check the sidewall of your tyre and you’ll see the ERTRO size.

So what does any of that have to do with 32” wheels? Well, the bicycle industry seems to have decided that a new bigger wheel size might be fun. And it seems like the 32” size (ISO 686) is the current favourite to make it onto production bikes. I should say here that 32” isn’t really a new size, it’s common in the unicycle world (along with 36” ISO 787). So there have always been tyres and rims available (well, about 2 tyre choices and about 1 rim!) and some small custom builders have been making use of these parts to build big-wheeled bikes for a while. There are a couple of companies specialising in building bikes for very tall people utilising 32” and 36” wheels in a small production environment but they are very much the exception.

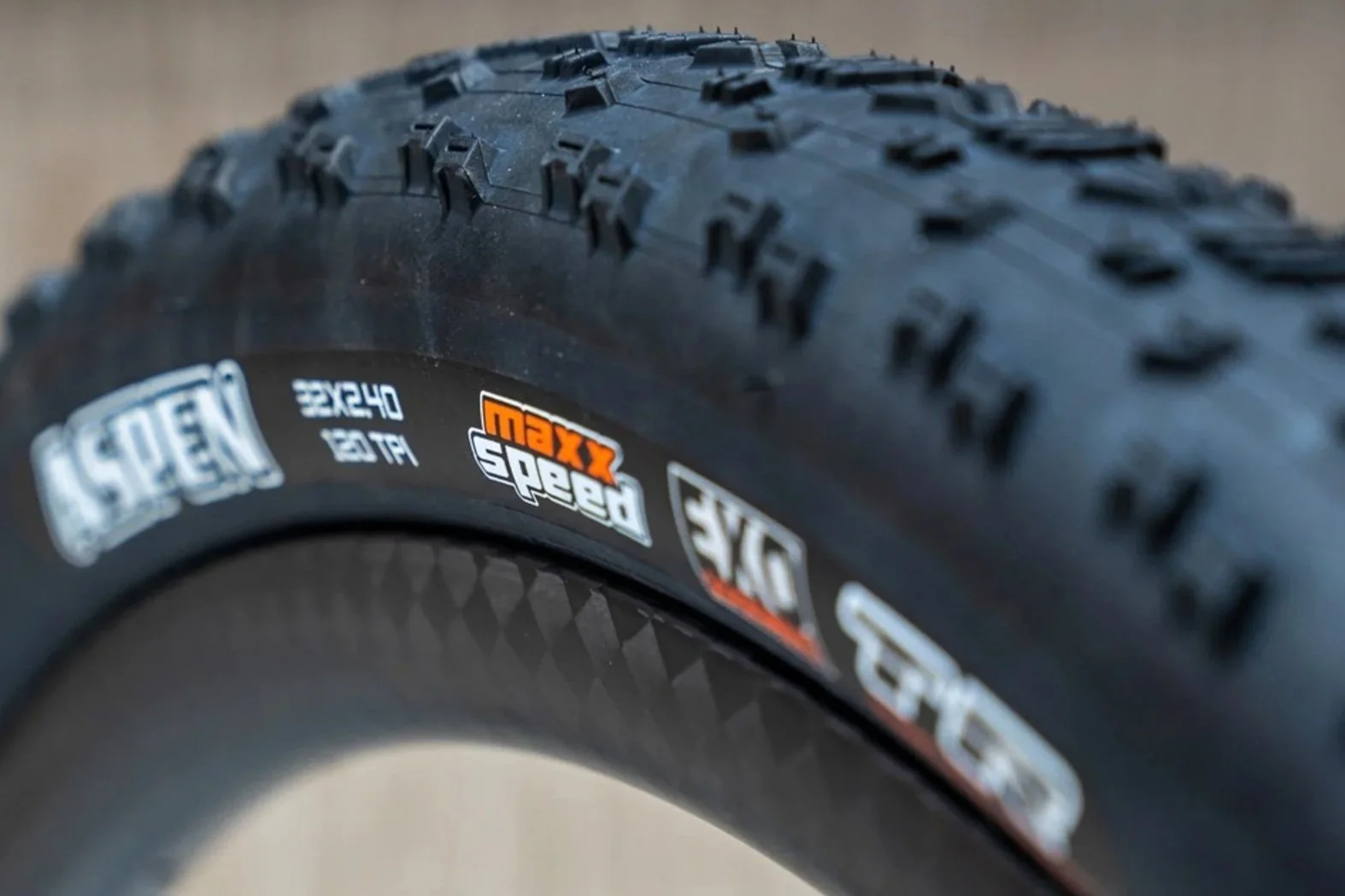

With industry support, we’ll see more trye choices and more rim choices. This is already starting to happen. I have two different types of 32” tyres in stock right now (bicycle not unicycle), 1 type of carbon rim and 1 type of aluminium rim. I know of two rim manufacturers that have committed to stocking a 32” rim very soon. That trickle will turn into a stream very quickly.

This new wheel size is going to be interesting in a couple of different ways. The movement for this new size has been driven mostly from the mountain bike

Examples Rear Sprockets Front Rings Development low Development high
Roadbike (700x35)
Touring Triple 12-32 30-39-50 2.4 9.06
Modern Road/Gravel 11-32 34-50 2.31 9.88
Rohloff 1 18 50 1.69 8.86
Rohloff 2 19 50 1.59 8.39
Rohloff 3 18 55 1.86 9.74
Rohloff 4 19 55 1.75 9.23
MTB (29x2.3)
XT Double 11-42 26-36 1.43 7.57
Eagle 1X 11-50 32 1.48 6.73
Rohloff 5 18 39 1.4 7.36
Rohloff 6 19 39 1.33 6.97
Rohloff 7 18 42 1.5 7.93
Rohloff 8 19 42 1.42 7.5

The 'Development' column (high and low) on the chart tells you how many metres the wheel will travel in one revolution of the crank. It's not a particularly useful piece of data on its own but it helps you to get an idea how the Rohloff gear range relates to a traditional derailleur drivetrain. These numbers show the extremes at either end of the gear range. You have a total of 14 gears so there are lots of available gears between these extreme values. One really nice thing about the Speedhub gearing is that all of the jumps between gears are consistent. This makes shifting gears very predictable.
